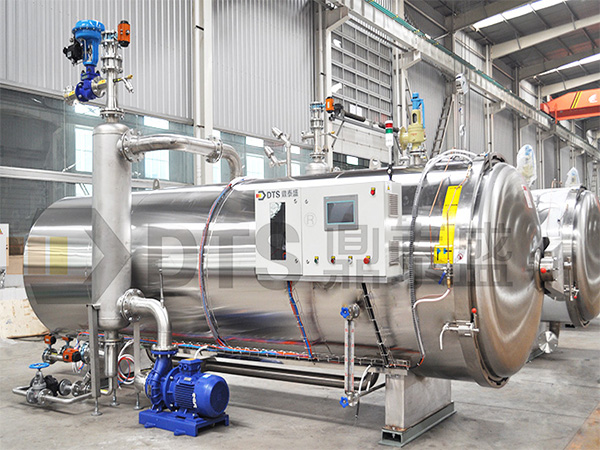

Water cascade retort,autoclave,canned retort,retort in food industry,retort machine,retort,sterilization,sterilizer,Heat up and cool down by the heat exchanger, so the steam and cooling water will not contaminate the product, and no water treatment chemicals are needed. The process water is evenly cascaded from top to bottom through the large-flow water pump and the water separator plate on the top of the retort to achieve the purpose of sterilization. The precise temperature and pressure control can be suitable for a variety of packaged products. The simple and reliable characteristics make DTS sterilization retort widely used in the Chinese beverage industry.
Working principle
Put the product into the sterilization retort and close the door. The retort door is secured by triple safety interlocking. Throughout the whole process, the door is mechanically locked.
The sterilization process is automatically carried out according to the recipe input to the micro-processing controller PLC.
Keep an appropriate amount of water at the bottom of the retort. If necessary, this part of water can be injected automatically at the beginning of the heating up. For hot-filled products, this part of water can be preheated first in the hot water tank and then injected. During the entire sterilization process, this part of water is repeatedly circulated by the high-flow pump through the water spreader plate located at the top of the retort, and the water is distributed evenly from top to bottom in the form of shower water to heat the product. This ensures an even distribution of heat.
Equip the spiral-tube heat exchanger for the sterilization retort and at the heating and cooling stages, the process water passes through one side, and the steam and cooling water pass through the other side, so that the sterilized product will not directly contact the steam and cooling water to realize aseptic heating and cooling.
Throughout the whole process, the pressure inside the retort is controlled by the program by feeding or discharging compressed air through the automatic valve to the retort. Due to cascade sterilization, the pressure in the retort is not affected by temperature, and the pressure can be set freely according to the packaging of different products, making the equipment more widely applicable (three-piece cans, two-piece cans, flexible packaging bags, glass bottles, plastic packaging etc.).
When the sterilization process is finished, an alarm signal will be issued. At this time, the door can be opened and unloaded. Then prepare to sterilize the next batch of products.
The uniformity of temperature distribution in the retort is +/-0.5℃, and the pressure is controlled at 0.05Bar.
Advantage
●Accurate temperature control, excellent heat distribution
The temperature control module (D-TOP system) developed by DTS has up to 12 stages of temperature control, and the step or linearity can be selected according to different product and process recipe heating modes, so that the repeatability and stability between batches of products are maximized well, the temperature can be controlled within ±0.5℃.
●Perfect pressure control, suitable for a variety of packaging forms
The pressure control module (D-TOP system) developed by DTS continuously adjusts the pressure throughout the whole process to adapt the internal pressure changes of the product packaging, so that the degree of deformation of the product packaging is minimized, regardless of the rigid container of tin cans, aluminum cans or plastic bottles, plastic boxes or flexible containers can be easily satisfied, and the pressure can be controlled within ±0.05Bar.
●Highly clean product packaging
The heat exchanger is used for indirect heating and cooling, so that the steam and cooling water are not in contact with the process water. The impurities in the steam and cooling water will not be brought to the sterilization retort, which avoids the secondary pollution of the product and does not require water treatment chemicals (No need to add chlorine), and the service life of the heat exchanger is also greatly extended.
●Compliant with FDA/USDA certificate
DTS has experienced thermal verification experts and is a member of IFTPS in the United States. It fully cooperates with FDA-approved third-party thermal verification agencies. The experience of many North American customers has made DTS familiar with FDA/USDA regulatory requirements and cutting-edge sterilization technology.
●Energy saving and environmental protection
A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature.
Low noise, create a quiet and comfortable working environment.
Unlike pure steam sterilization, there is no need to vent before heating, which greatly saves steam loss and saves about 30% of steam.
L-10-2/3
L-12-3/4/5
L-14-3/4/5/6
L-16-4/5/6
L-18-5/6
Tin can
Aluminum can
Aluminum bottle
Plastic bottles, cups, boxes, trays
Glass jars, cans
Flexible packaging pouch
Ligation casing package
Drinks (vegetable protein, tea, coffee)
Dairy products
Vegetables and fruits (mushrooms, vegetables, beans)
Fish and seafood
Baby food
Ready-to-eat meals
Pet food
